| Application: | E-car, E-bus, Golf Troller/car, E-bike, Scooter | Typical Capacity: | 3000mAh |
|---|---|---|---|

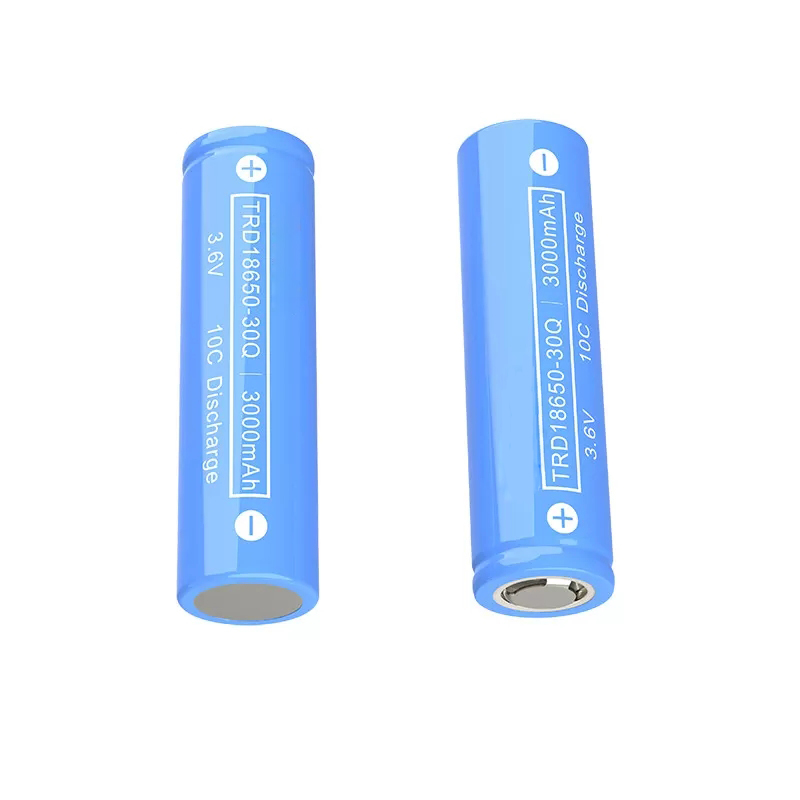

| Certifications: | CE, RoHS, UN38.3 | Model No.: | TRD18650-30Q |
| Cycle Life: | 500 Cycles | Operating Temperature: | -20°C To 75°C |
| Voltage: | 3.7V | ||
| High Light: |
3000mah High Discharge Lithium Battery, 3000mah cylinder lithium ion battery, Cylinder High Discharge Lithium Battery |
||
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Broad operating temperature range.
| No. | Item | Specifications |
| 1 | Model No. | YX18650-30Q |
| 2 | Typical Capacity | 3000mAh @0.2C Discharge |
| 3 | Min capacity | 2900mAh @0.2C Discharge |
| 4 | Nominal voltage | 3.7V |
| 5 | Standard Charge | CC/CV,0.5C,4.20V |
| 6 | Standard Discharge | CC,02C,2.5V |
| 7 | Cut-off charge Voltage | 4.20V±0.05V |
| 8 | Cut-off charge Current | 100mA (At CVmode) |
| 9 | Cut-off discharge Voltage | 2.5V |
| 10 | Charging Time | 3hours(standard charge) |
| 11 | Quick Charge Current | 4.5A (1.5C ) |
| 12 | Quick Discharge Current | 30A (10C ) |
| 13 | Max Discharge Current | 50A (2s) |
| 14 | Initial Impedance | ≤18mΩ |
| 15 | Weight | 47.5g |
| 16 | Operating temperature | Charging: 0℃~50℃ Discharging:-20℃~75℃ |
| 17 | Storage temperature | -20℃~45℃ |
| 18 | Storage Humidity | ≤75%RH |
| 19 | Standard environmental condition | Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA |
