| Certifications: | UL, CE, RoHS | Model: | TRD24200 |
|---|---|---|---|
| Size: | 522 X 268 X220 Mm | Energy: | 5120Wh |
| Voltage: | 25.6 V | ||
| Highlight: |
5120Wh Lithium Iron Phosphate Battery,24V Lithium Iron Phosphate Battery,200Ah Lifepo4 Lithium Battery |
||

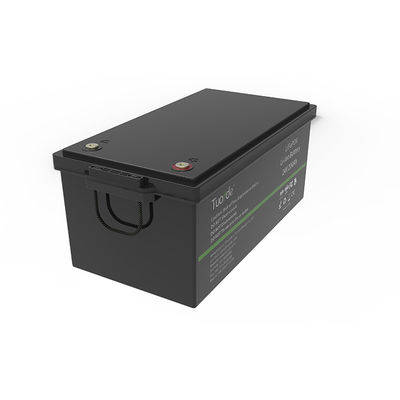

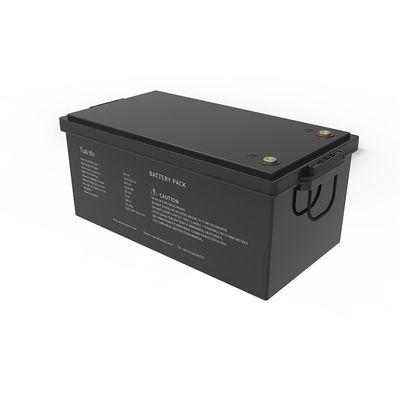

Tuorde 24V 200Ah 5120Wh Phosphate Lithium High Voltage EV Car Over current protection, Residual current protection
1.High integrated with less installation space.
2.Operating temperature,Charging:0℃~45℃,Discharging:-20℃~55℃
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection
| Model No. | TRD24200 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 200Ah |
| Energy | 5120Wh |
| Communication | No |
| Resistance | ≤80 mΩ @ 50% SOC |
| Module Parallel or series(for option) | Up to 4packs |
| Bluetooth function | For option |
| Recommended Charge Current | 40A |
| Maximum Charge Current | 50A |
| Recommended Charge Voltage | 29.2V |
| BMS Charge Cut-Off Voltage | <29.2 V (3.65V/Cell) |
| Balancing Starting Voltage | 3.4V/Cell |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300 A (1s) |
| Recommended Low Voltage Disconnect | 20 V (2.5V/Cell) |
| BMS Discharge Cut-Off Voltage | 16V (2.0V/Cell) |
| Short Circuit Protection | ＜350 μs |
| Dimension (L x W x H) | 522 x 268 x220 mm 20. 6x10.55 x 8.66” |
| Approx. Weight | 85.98lbs(39Kg) |
| Terminal Type | M8 terminal |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
| Certifications | CE (battery) UN38.3 (battery) |
