| Model No.: | TRD12200 | Capacity: | 2560Wh |
|---|---|---|---|
| Enclosure Protection: | IP65 | Dimensions: | 522 X 238 X218 Mm |
| Warranty: | 5 Year | Weight: | 25Kg |
| Highlight: |
12200 Cleaning Equipment Batteries,UN38.3 lifepo4 battery 12v 200ah,Cleaning Equipment Batteries 200Ah |
||

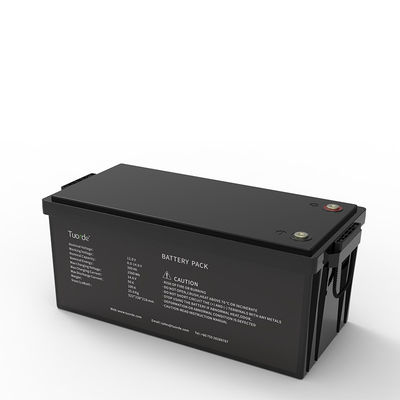

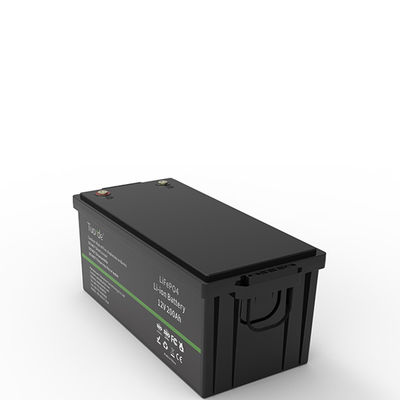

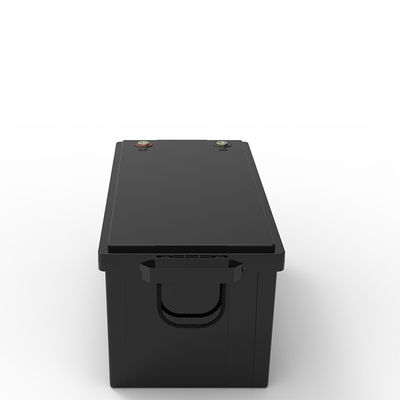

Cleaning Equipment TRD12200 12V 200Ah Phosphate Lithium High Voltage EV Car
1. High integrated with less installation space.
2. Operating temperature,Charging:0℃~45℃,Discharging:-20℃~55℃
3. Without heavy metals and environment friendly.
4. Maintenance free, no memory effect.
5. Internal BMS with full protection,
| Model No. | TRD12200 |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Communication | No |
| Resistance | ≤80 mΩ @ 50% SOC |
| Module Parallel or series(for option) | Up to 4packs |
| Bluetooth function | For option |
| Recommended Charge Current | 40A |
| Maximum Charge Current | 50A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <14.6 V (3.65V/Cell) |
| Balancing Starting Voltage | 3.4V/Cell |
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 300 A (1s) |
| Recommended Low Voltage Disconnect | 10 V (2.5V/Cell) |
| BMS Discharge Cut-Off Voltage | 8V (2.0V/Cell) |
| Short Circuit Protection | ＜350 μs |
| Dimension (L x W x H) | 522 x 238 x218 mm 20. 6x9.37 x 8.58” |
| Approx. Weight | 55.1lbs(25Kg) |
| Terminal Type | M8 terminal |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
| Certifications | CE (battery) UN38.3 (battery) |
