| Application: | Cleaning Equipment, Flashlights, Cameras, Security Systems | Capacity: | 1280Wh |
|---|---|---|---|
| Dimensions: | 325x 169 X212 Mm | Operating Temperature: | -20°C To 60°C |
| Shelf Life: | 10 Years | Storage Temperature: | -40°C To 60°C |
| Weight: | 13kg | ||
| Highlight: |
1280Wh Cleaning Equipment Batteries,100Ah Phosphate Lithium Battery,12.8V Cleaning Equipment Batteries |
||

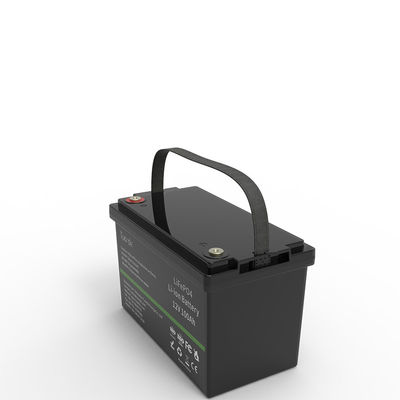

Cleaning Equipment Batteries 12.8V 100Ah 1280Wh Phosphate Lithium High Voltage EV Car
1.High integrated with less installation space.
2.Operating temperature,Charging:0℃~45℃,Discharging:-20℃~55℃
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection
| Model No. | TRD12100 |
| Nomingl Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Enengy | 1280Wh |
| Communication | No |
| Resistance | ≤80 mΩ @ 50% SOC |
| Module Parallel or series(for option) | Up to 4packs |
| Bluetooth funcio | For option |
| Dimension (Lx Wx H) | 325x 169 x212 mm 12.8x6.65x8.35“ |
| Approx.Weight | 28.6lbs(13Kg) |
| Terminal Type | M8 terminal |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
| Recommended Charge Current | 20A |
| Maximum Charge Current | 50A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <14.6 V (3.65V/Cell) |
| Balancing Starting Voltage | 3.4V/Cell |
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Curent | 300A(1s) |
| Recommended Low Voltage Disconnect | 10V(2.5V/Cell) |
| BMS Dischage Cut-Off Voltage | 8V (2.0VCell) |
| Short Circuit Protection | <350 μs |
| Discharge Temperature | -4~131 F (-20-55°℃) |
| Charge Temperature | -4~113 F (0~45 ℃) |
| Storage Temperature | 23~95F(-5~35℃) |
| BMS High Temperature Cut-Off | 149F(65℃) |
| Reconnect Temperature | 131F(55℃) |
| Certifications | CE(battery) UN38.3 (battery) |
