| Product Name: | Wall Mounted Lithium Battery | Brand: | Tuorde |
|---|---|---|---|
| Working Temperature: | -10°C-60°C | Color: | White,Black Or Customized |
| Warranty: | L501×W452×H155 | Weight: | 48/52Kg |
| Highlight: |
Lightweight ESS Battery Storage,BMS Wall Mounted Lithium Battery,BMS ESS Battery Storage |
||

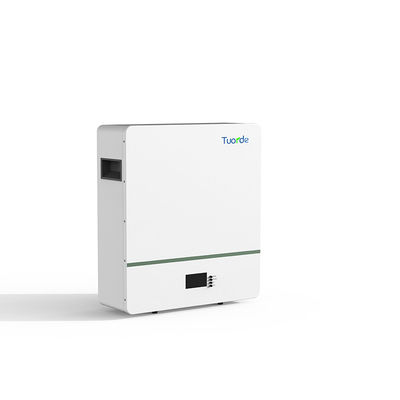

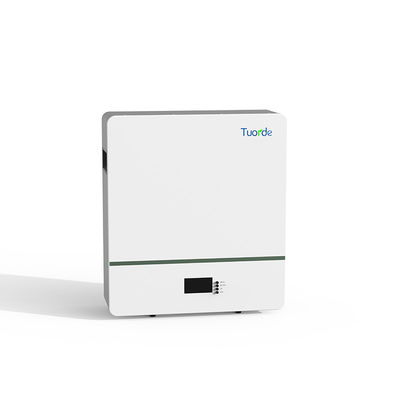

Tuorde Factory Wall-mounted RD-PW48100A
| No. | Item | Spec |
| 1 | Model No. | TRD-PW48100A |
| 2 | Nominal Voltage (V) | 48/51.2 |
| 3 | Nominal Capacity(Ah) | 100 |
| 4 | Energy (Wh) | 4800/5120 |
| 5 | Dimension (mm) | L501×W452×H155 |
| 6 | Weight (Kg) | 48/52 |
| 7 | Discharge Cut-off Voltage (V) | 40.5(15S)/43.2(16S) |
| 8 | Charge Cut-off Voltage (V) | 54.7(15S)/58.4(16S) |
| 9 | Communication Port | R5485,RS232 CAN |
| 10 | Cell serial number (pcs) | 15S/16S |
| 11 | Working Temperature | -10°C-60°C |
| 12 | Design life | 10+Years(25°C/77°F) |
| 13 | Cycle Life | >6000,25°℃/77F,80%DOD |
| 14 | Certification | CE/UN38.3 |
| 15 | Supports the max number of parallel connections | 16 |
| 16 | Maximum continuous charge current | 100A |
| 17 | Maximum continuous discharge current | 100A |
