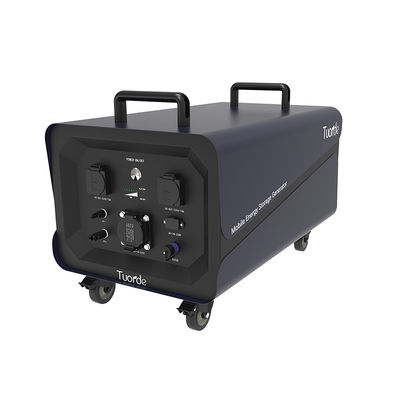

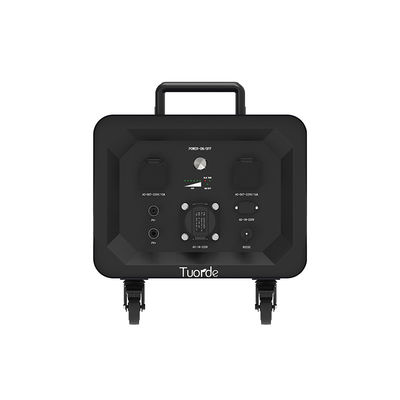

Tuorde Factory Mobile energy storage generator
| Grid output Parameters(ac) | |
| Rated AC output power | 500VA |
| Rated AC output current | 21.7A |
| THDI | <3% |
| Rated grid voltage/Grid voltage range | 230Vac/176-270Vac |
| Rated grid frequency/Grid frequency range | 50Hz(45-54Hz)/60Hz(55-65Hz) |
| Type of grid connection | AC Charging connector |
| Eps output(with battery) | |
| EPS rated voltage | 220/230/240Vac |
| EPS rated frequency | 50/60Hz |
| Max.EPS power | 5000VA |
| EPS overload protection | 150%,30S |
| THDU | <2% |
| Type of output connection | Socket panel,AC Charging connector |
| Switch times | <20mS |
| Battery Parameter | |
| Battery type | LFP |
| Battey rated voltage | 51.2V |
| Capacity | 100Ah |
| Battery voltage range | 42-58V |
| Max. charging current | 75A |
| Max. discharging current | 100A |
| Other System Parameter | |
| Max. efficiency | 95% |
| Cooling method | Fan |
| Storage/Operation relative hunidity | 10-90% (Condensing) |
| Operating temperrature range | -20°C~50°C |
| Max.altitude | 2000m |
| Dimension(W*D*H) | 700*424*482mm |
