  • image of Lead Acid Battery>YX-24V60Ah
  • image of Lead Acid Battery>YX-24V60Ah
  • image of Lead Acid Battery>YX-24V60Ah
  • image of Lead Acid Battery>YX-24V60Ah
Part number
Product classification
Certification
Manufacturer
Quantity
RoHS status
Encapsulation
YX-24V60Ah
-
Place of Origin: China Certification: CE/UL/UN38.3
-
1000
YES
product details
image of Lead Acid Battery>YX-24V60Ah
image of Lead Acid Battery>YX-24V60Ah
image of Lead Acid Battery>YX-24V60Ah
YX-24V60Ah
Certification
Quantity
Batch number
Remarks
RoHS status
Specification sheet
YX-24V60Ah
-
-
1000
Product parameters
Application: Electric Vehicles, Solar Energy Storage, UPS Systems Battery Material: LIFEPO4
Weight: 16KG Life: 6~10 Years
Temperature Range: -20℃~50℃ Size: 339*185*218mm
Cycle Life: 3000+
High Light:

Lead Acid Replacement Battery 24V, 60Ah Deep Cycle Storage Battery, 60Ah Lead Acid Replacement Battery

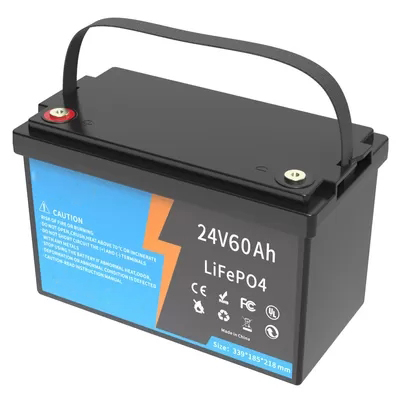

24V 60Ah Rechargeable Power storage batteries/ Lead Acid Replacement Battery UPS battery



This Latest battery system has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.



Nominal Voltage: 25.6V
Nominal Capacity: 60AH
End of Discharge Voltage: 19.2V
End of charge Voltage: 29.2V
Max.Cont. Charge Current: ≤50A
End of Charge Current: 100mA
Nominal Discharge Current: 50A(Safe)
Max. Pulse Discharge Current: 100A(10s)
Internal Resistance: ≤50mΩ
Discharge Temperature -4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature -4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
Charge Method: CC/CV
BMS: Built in BMS
Dimension: 339*185*218mm
Weight: 16KG
Cycle Life: 3000+
BMS protection Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection
